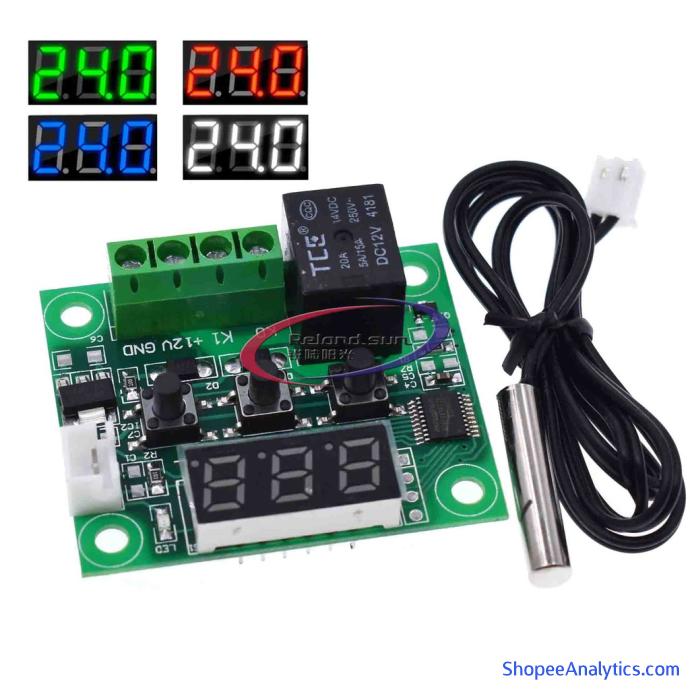

W1209WK W1209 DC 12V AC 110V 220V Digital Thermostat Temperature Controller Regulator Thermoregulator Incubator Sensor Meter NTC

37,900đ

1 đánh giá
4.0 Tốt

Giá khuyến mãi thay đổi sau

  • 0h
  • 0m
  • 0s

20 đã bán/tháng

Lịch sử giá:
Sản phẩm liên quan
  • 0h
  • 0m
  • 0s
Đánh giá cơ bản:

Đáp ứng nhu cầu sử dụng 10/10 điểm

Tổng thể W1209WK W1209 DC 12V AC 110V 220V Digital Thermostat Temperature Controller Regulator Thermoregulator Incubator Sensor Meter NTC được đánh giá trung bình 4.00/5 điểm dựa vào 1 đánh giá qua 3 lượt mua hàng (Cập nhập ngày 21/09/2021).

Vì đây là sản phẩm thương hiệu được bán từ gian hàng chính hãng nên giá sẽ cao hơn so với giá các sản phẩm khác.

Tuy nhiên: Sản phẩm đang bán Ưu đãi với giá 37,900đ so với giá niêm yết 0đ.

Ngoài ra Quý khách có thể sưu tầm và sử dụng mã giảm giá tại đây để được giá tốt nhất tại đây

Thông tin:

Specifications:

Temperature range :-50-110 °
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution:When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
Control accuracy: 0.1 °
Hysteresis accuracy: 0.1°
Refresh rate: 0.5S
High temperature protection: 0-110°
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor

Environmental requirements: -10 ~ 60 ° ,Humidity 20% -85%
How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Package Included:
1 x -50-110°C Digital thermostat Temperature Control Switch 12V

1 x NTC probe cable

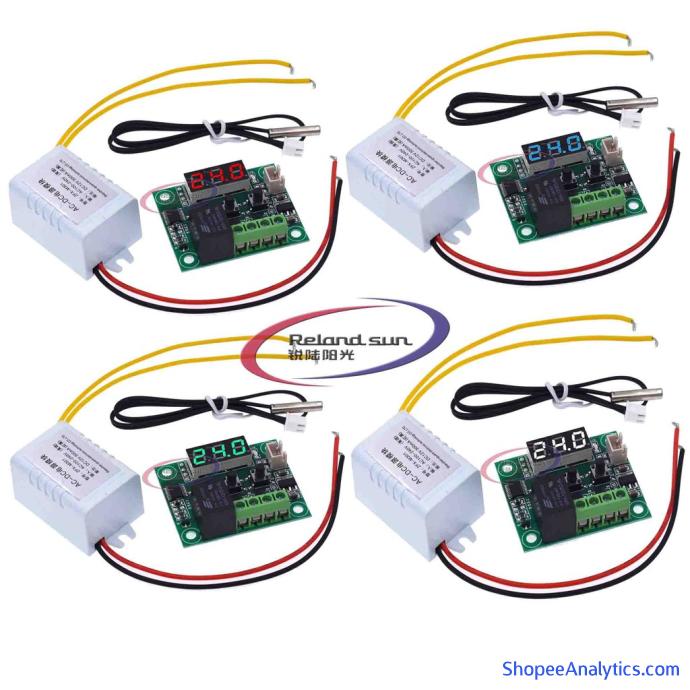

W1209 110V-220V

TIM20190228121140

Specifications:

Temperature range :-30-110 °
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution:When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
Control accuracy: 0.1 °
Hysteresis accuracy: 0.1°
Refresh rate: 0.5S
High temperature protection: 0-110°
Supply voltage: AC 110V-220V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: AC 110V-220V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor

Environmental requirements: -10 ~ 60 ° ,Humidity 20% -85%


Package Included:
1*AC 110-220V W1209 Module
1*transformer
1*NTC probe cable

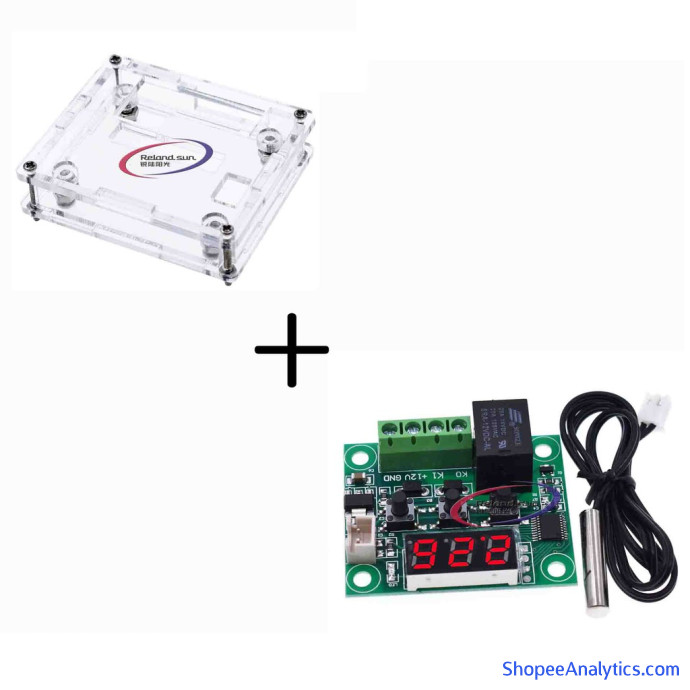

W1209 with case
TIM20190228121449
Product Features:
1, complete machine patch, wave soldering, stable performance, good consistency
2, with a shell, more beautiful and practical
3, embedded central processor chip (MCU), smarter, lower power consumption
4, power-off setting automatic memory (MCU built-in EEPROM storage unit)
5, control accuracy of 0.1 degrees Celsius
6, the setback of 0.1, can control the decimal (0.1-15.0)

Technical Parameters:
Temperature control range: -50~110°C
Resolution: -9.9~99.9 when 0.1 °C Other temperature range 1 °C
Temperature measurement accuracy: 0.1 °C
Control accuracy: 0.1 °C
Hysteresis accuracy: 0.1 °C
Refresh rate: 0.5 S
Display type: 0.28 inch three digital tube
Input power: DC 12V
Measurement input: NTC (10K 0.5%) Waterproof sensor Line length 300mm
Output: 1 relay output, 5A 250VAC, 20A 16VAC
Environmental requirements: -10~60°C Humidity 20%-85%
Size: 47.5*18.5*31.5mm
Power consumption of the whole machine: quiescent current: ≤10MA Pull-in current: ≤65MA

Method of use:
Connect the power supply and equipment
